INA260 current sensor

Posted on

INA260 Current Sensing chip


I2C interface. Libraries for both Arduino and Raspberry Pi and can be run with 3.3V.

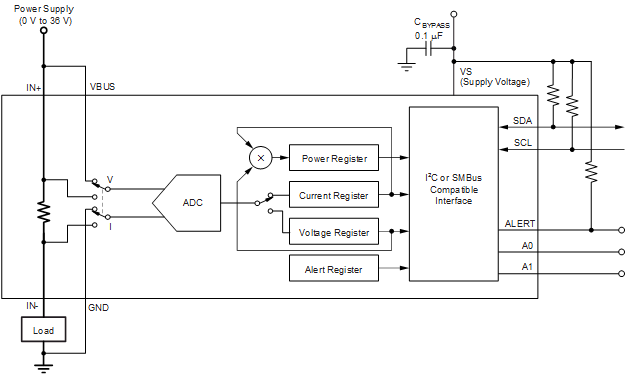

In this diagram, the shunt resistor is only 2 milliohms. It is capable according to technical notes of voltages up to +36V and 15A continuous (DC only).

You would connect the load under test as in the diagram above or below.

INA260 wiring


Core Electronics

INA260 wiring
